E608/T

ELECTRIC PUMP

E608/T

ELECTRIC PUMP


E608/T electric motor with gear pump and pressure intensi er 1:10 (BP 200 bar – HP 2.000 bar) are designed to provide optimal service with bolt tensioner or hydraulic tools single and double-acting (return to the regulated pressure relief valve – max 200 bar), thanks to their compact size and light weight. Equipped with remote control with 5 m. cable for an easy use, 10 Ltr. tank, timer function which stops the engine to avoid overheating the oil and unnecessary energy consumption, heat- exchanger, return oil lter, electromagnetic level and protective framework it is the ideal tool under all job conditions.
The relief valve on the line A adjustable up to 200 and the control oil pressure gauge double reading scale allows an easy and accurate use.

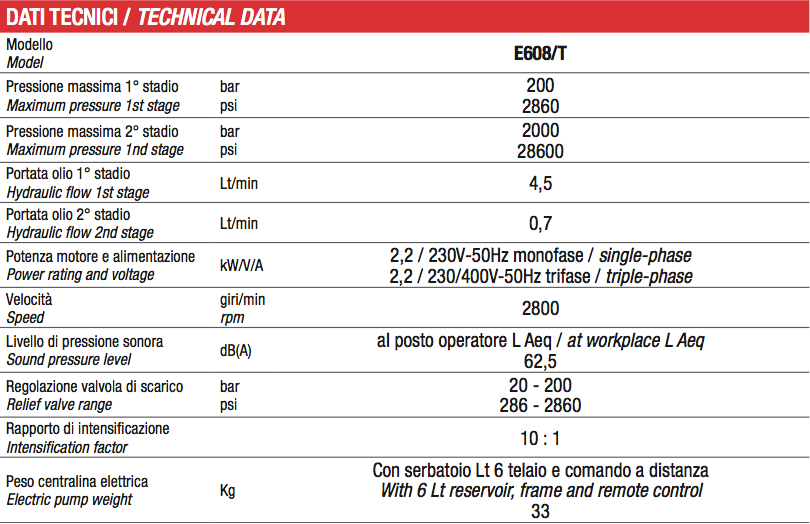

Available with motor of 2,2 kW at 2.800 rpm and operating voltage 230-400V 50Hz three-phases or 2,2 kW at 2.800 rpm and operating voltage 230V 50Hz single-phase.

MOTOR

01

ELECTRIC

OIL FLOW RATE

02

AT 2.000 BAR: 0,7 Lt/min

ACTING

03

SINGLE AND DOUBLE

PRESSURE

04

MAXIMUM 2.000 BAR
