E508/T-EOS

BOLT TENSIONER PUMP

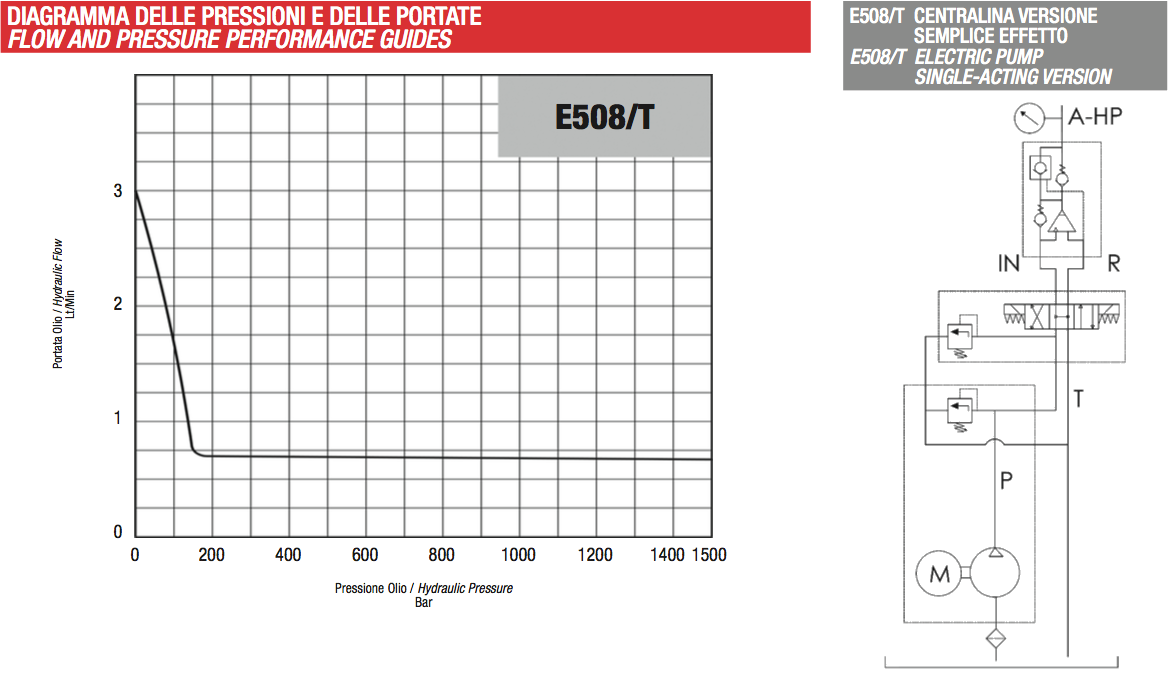

E508/T electric motor with gear pump and pressure intensifier 1:10 (BP 150 bar – HP 1.500 bar) are designed to provide optimal service with bolt tensioner or hydraulic tools single-acting, thanks to their compact size and light weight.
Equipped with remote control with 5 m. cable for an easy use, 6 Ltr. tank, timer function which stops the engine to avoid overheating the oil and unnecessary energy consumption, electromagnetic level and protective framework it is the ideal tool under all job conditions.
The relief valve on the line A adjustable up to 150 and the control oil pressure gauge double reading scale allows an easy and accurate use.

Available with motor of 1,1 kW at 2.800 rpm and operating voltage 230-400V 50Hz three- phase or 1,1 kW at 2.800 rpm and operating voltage 230V 50Hz single-phase.
