P802

PNEUMOHYDRAULIC PUMPS

P802

N° 3 PRESSURE RATIOS

Pneumohydraulic pump with integral three- way directional control valve for supplying single-acting cylinders.
A compact, portable, low-cost device available with three intensi cation ratios 1:45 – 1:72 – 1:120, with maximum pressures of 250 – 500 – 700 bar respectively. It can be pedal-controlled (P802), or be complete with pneumatic remote control (P802/A version) and cuts out when the maximum hydraulic pressure is reached, keeping the circuit pressurised. Fitted with external relief valve for overload protection, it is used to operate lifting, pulling and pushing cylinders. In the standard model, the tank has a working capacity of 1.4 litres.



list-style2HYDRAULIC PRESSURE: 135 - 700 BAR


list-style2

VERSION WITH FOOT CONTROL


list-style2

PNEUMATIC REMOTE CONTROL VERSION

The following optional accessories are available:

  1. tanks of various capacities
  2. pneumatic system accessories
  3. hydraulic system accessories.

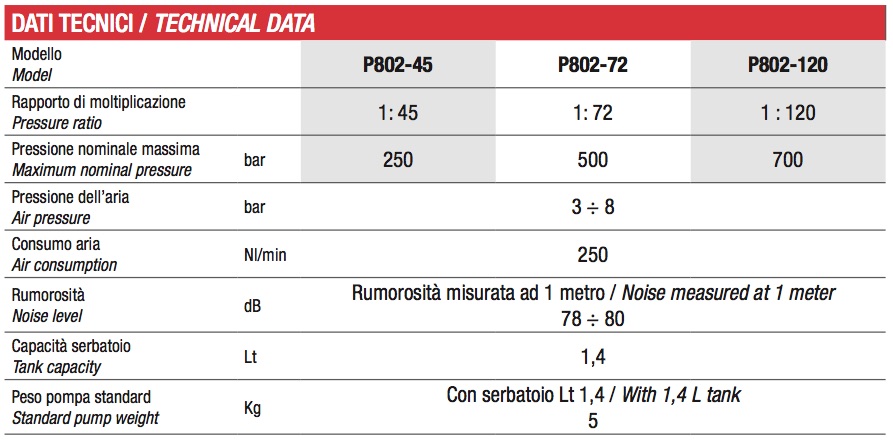

p802dt

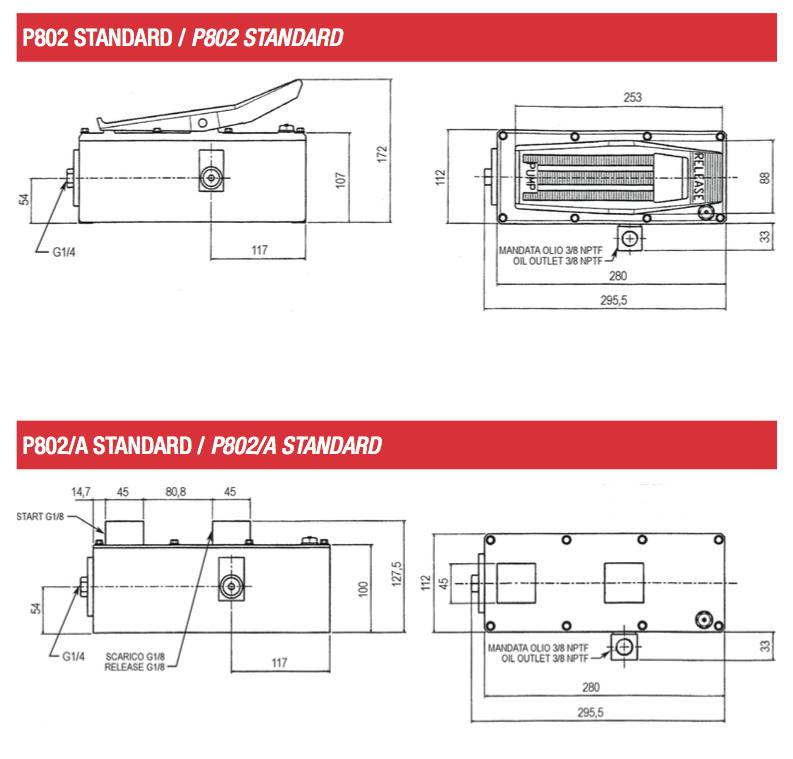

P802_disegno

p802_app

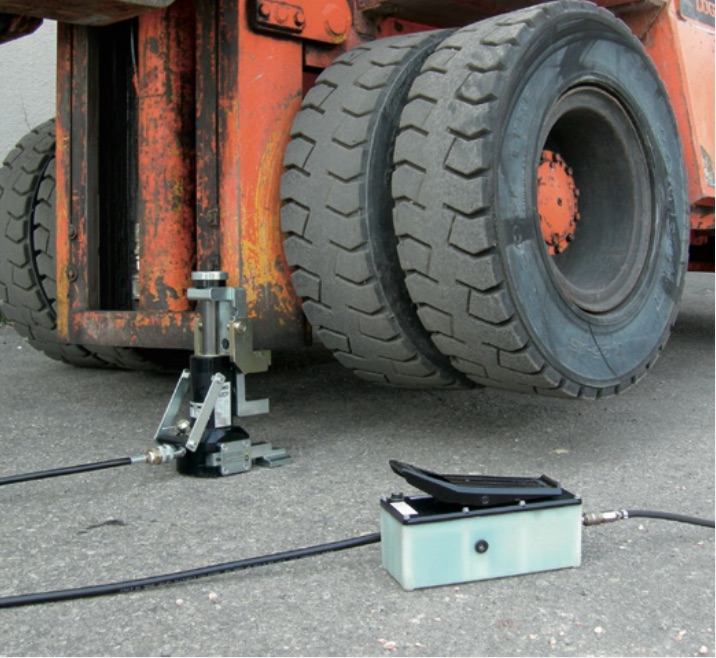

P802 pneumohydraulic pump with HP1/4-8 ex hose connected with OLMEC J580P portable hydraulic fork-lift truck jack.
