750-O

DOUBLE-ACTING BLOCK CYLINDERS WITH O-RING SEALS

These compact double-acting cylinders are able to perform a wide variety of functions with high production cycles for clamping, pressing, lifting, bending and punching.

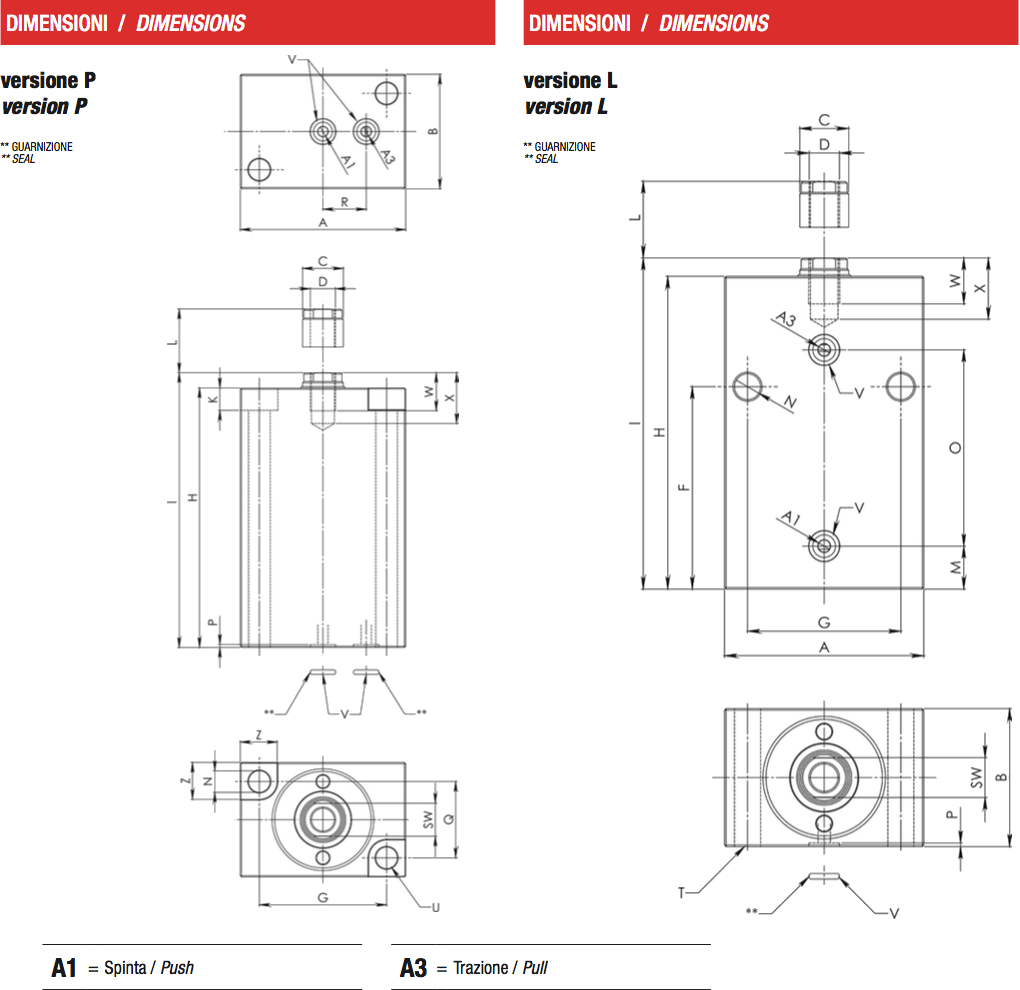

In all sizes, the fluid is supplied to the cylinder through passages in the fixing plate, with inlet ports at the sides (version L) or at the rear (version P).

In all models available the piston is in hardened steel, while the nitrited body guarantees good protection against corrosion, thus minimizing wear.

Special versions can be produced on request.

WARNING:

For pressures over 150 bar the cylinder must be equipped with back rest.
