B861

No. 7 PRESSURE RATIOS | HYDRAULIC PRESSURE UP TO 800 BAR

B861 alternate-cycle oil-oil pressure intensi ers are very compact units weighing just 0.7 Kg.

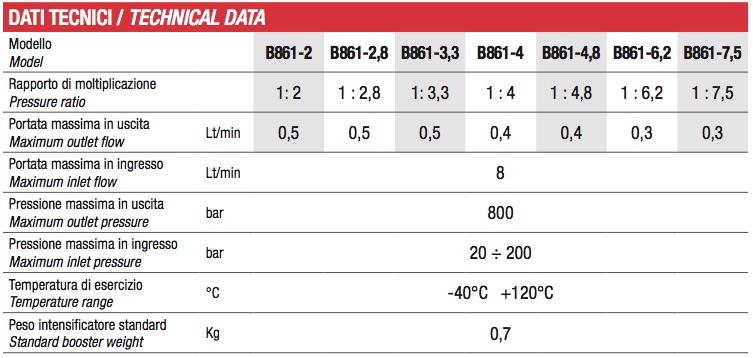

B861 intensifiers increase the input pressure in response to the intensification ratio set and automatically compensate for any headlosses, maintaining the high pressure required. The input pressure is varied to obtain the output pressure required. Available in 7 intensfication ratios.

Main Advantages:

• Small size / high performance
• In-line installation
• Automatic headloss compensation on the high pressure side
