B864

OIL-OIL OSCILLATING BOOSTER

B864

No. 9 PRESSURE RATIOS | HYDRAULIC PRESSURE UP TO 800 BAR

B864 alternate-cycle oil-oil pressure intensifiers are very compact units weighing just 3.7 Kg.
B864 intensifiers increase the input pressure in response to the intensification ratio set and automatically compensate for any headlosses, maintaining the high pressure required. The input pressure is varied to obtain the output pressure required. Available in 9 intensification ratios.

Main Advantages:
  • Small size / high performance
  • In-line installation
  • Automatic headloss compensation on the high pressure side

list-style2

HYDRAULIC PRESSURE UP TO 800 BAR

 list-style2FLOW-RATE TO 7 LT/MIN

list-style2

HORIZONTAL OR VERTICAL MOUNTING

list-style2

SMALL DIMENSIONS



The following optional accessories are available:

  1. hydraulic system accessories

Other accessories:

This is a sample text. You can click on it to edit it inline or open the element options to access additional options for this element.

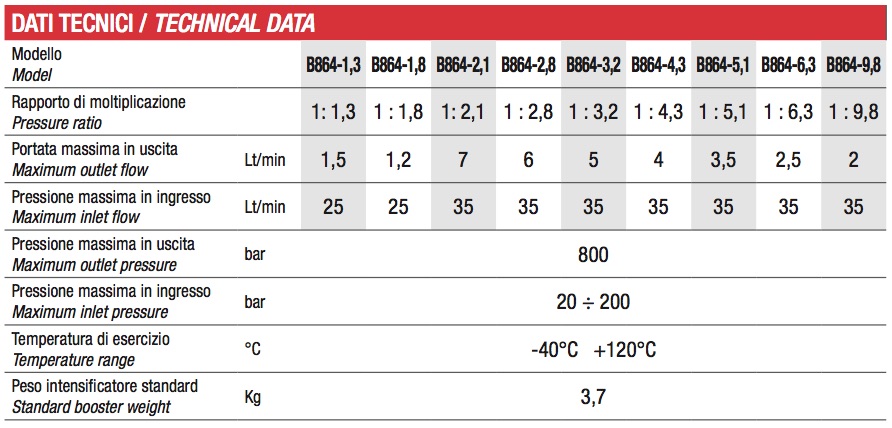

b864dt

b864_dis

b864_app

Oil-Oil Oscillating Boosters
